Your First Route

This tutorial adds a second route to the setup from the Quick Start: requests to /orders/* will be forwarded to the echo backend with the /orders prefix stripped, and upstream failures will get a custom JSON error response.

Make sure the gateway and the echo backend are running (locally or via docker compose up).

1. Add the route

A route pairs a match rule with the name of a policy. Append this to the routes: list in config/gateway.yaml:

routes:
  # ... existing echo-api route ...
  - name: orders-api
    match:
      path: /orders/*
      methods: [GET, POST]
    policy: orders-policy

• match.path — glob-style path pattern the incoming request must match.
• match.methods — allowed HTTP methods.
• policy — the name of a policy defined in the policies: section. Routes are checked in declaration order; the first match wins.

2. Add the policy

A policy is a node graph: a list of nodes (plugin instances) and edges (connections between ports). Append this to the policies: list — it is the shipped echo-policy adapted for the new prefix:

policies:
  # ... existing echo-policy ...
  - name: orders-policy
    error_handler: error-handler
    nodes:
      - id: listener
        type: listener

      - id: rewrite-request
        type: proxy-rewrite
        config:
          phase: request
          strip_path_prefix: /orders

      - id: backend
        type: upstream
        config:
          targets:
            - host: ${ECHO_BACKEND_HOST:-localhost}
              port: ${ECHO_BACKEND_PORT:-3000}

      - id: error-handler
        type: error-handler
        config:
          status_code: 502
          body_template: '{"error": "{{error.code}}", "message": "{{error.message}}"}'

      - id: client
        type: client

    edges:
      - from: listener.out
        to: rewrite-request.in
      - from: rewrite-request.success
        to: backend.in
      - from: backend.success
        to: client.in
      - from: backend.error
        to: error-handler.in
      - from: error-handler.success
        to: client.in

Reading it piece by piece:

• Nodes. Each node has a unique id, a type (one of the built-in plugin types), and a type-specific config map. Every policy must contain a listener node (the graph's entry point) and a client node (the terminal exit point) — see Listener and client nodes.
• Edges. Each edge connects from: node_id.port to to: node_id.port. The listener emits the initial context on its out port; plugin nodes emit on success or error; targets receive on in. See Policies and graphs for the full port semantics.
• Happy path. listener → rewrite-request → backend → client: strip /orders, call the upstream, send its response to the caller.
• Error path. backend.error → error-handler.in routes upstream failures to a node that renders a 502 with a templated JSON body, which then flows to the same client node. The policy's error_handler: error-handler field additionally names this node as the catch-all for any node whose error port is not wired — see Error handling.

3. Reload the configuration

You have two options:

• Just save the file. A file watcher detects changes to gateway.yaml and hot-reloads automatically.
• Trigger it explicitly via the admin API:

curl -X POST -u admin:admin http://localhost:9090/api/config/reload

Either way the gateway validates and compiles every policy before swapping the route table. If your edit is invalid (for example an edge pointing at a nonexistent node), the reload fails and traffic keeps flowing on the previous configuration — check the gateway logs for the validation messages.

4. Verify

curl http://localhost:8080/orders/123

The echo backend reports the path it received, confirming the prefix strip:

{
  "method": "GET",
  "path": "/123",
  "headers": {
    "host": "localhost:3000",
    "accept": "*/*"
  }
}

To see the error path, stop the echo backend and repeat the request — the error-handler node now answers:

{"error": "upstream_error", "message": "..."}

with status 502.

5. Edit the same policy in the web UI

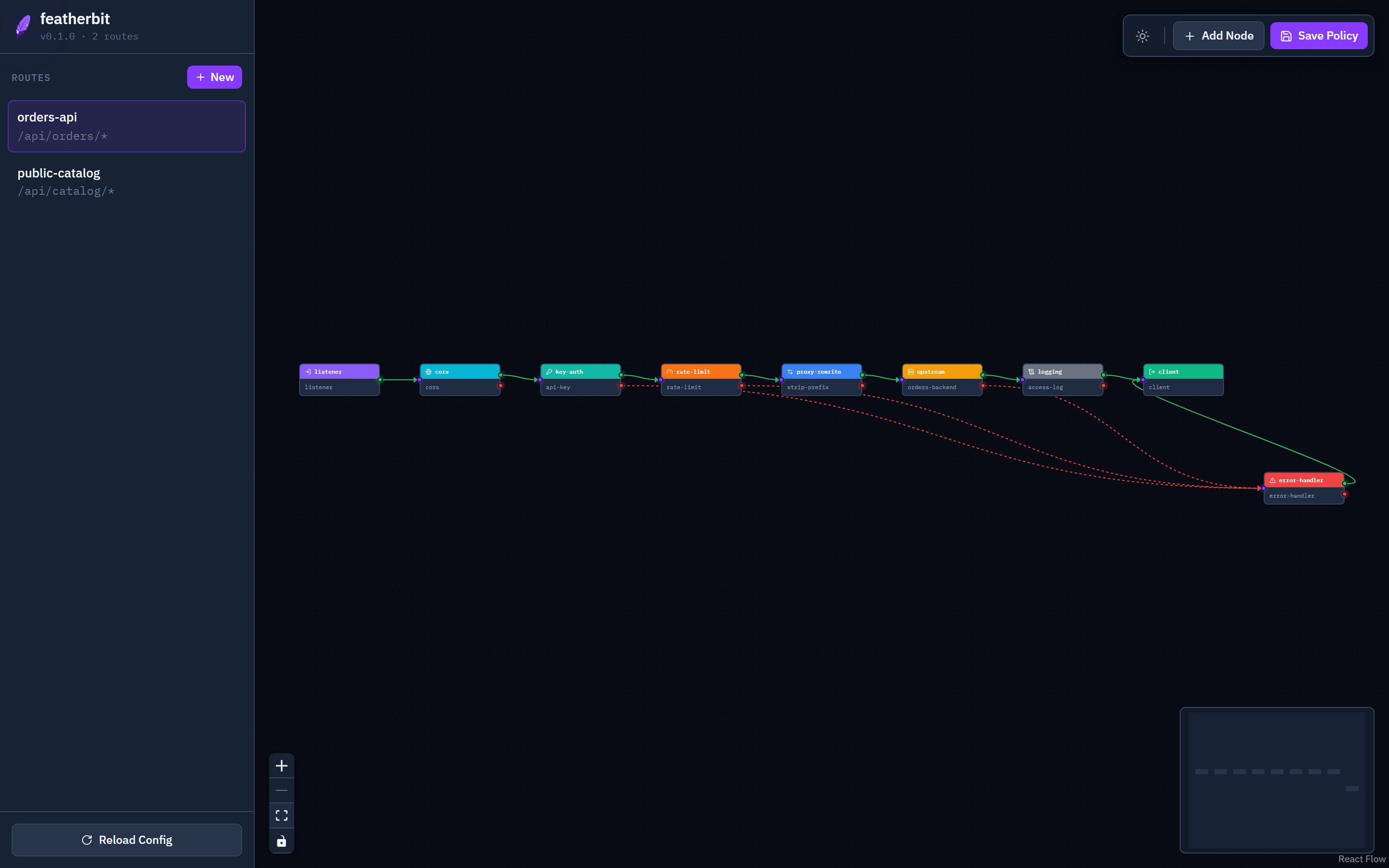

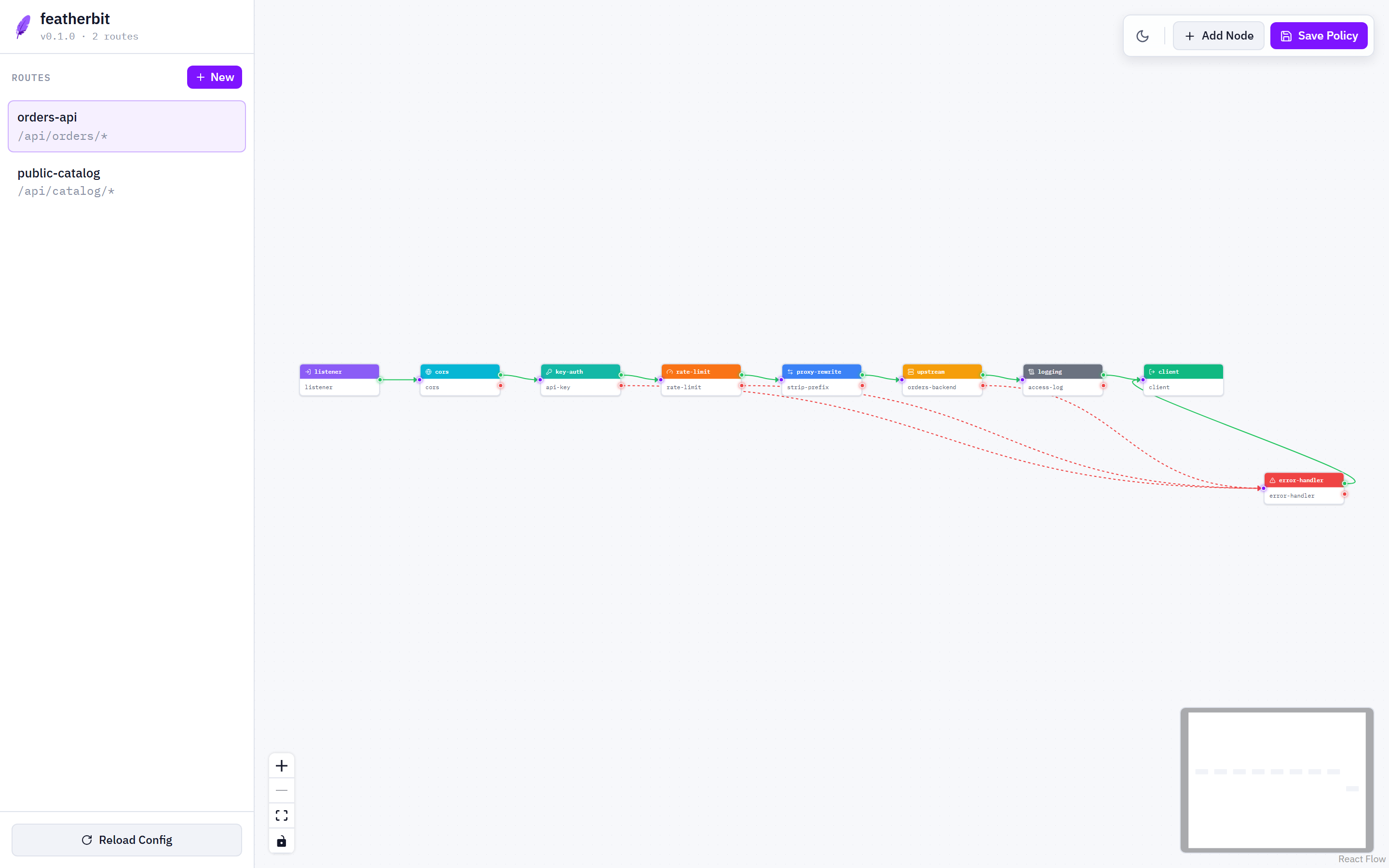

Open http://localhost:9090 and select orders-api in the route list. The exact graph you wrote in YAML appears on the canvas: green wires for success edges, red for error edges. You can add plugins from the drawer, rewire ports, edit node config in the inspector, and click Save Policy to deploy — the UI and the YAML are two views of the same data, so changes made in either place stay in sync.

The policy you just wrote in YAML, rendered on the canvas. Nothing was imported or converted — the editor is reading the same policy the gateway is running.
