Policies and Graphs

A routing policy is a directed node graph that defines how requests matched by a route are processed. Each node is a plugin instance; each edge routes the Context from one node's output port to another node's input port. Policies live in gateway.yaml and are referenced by name from routes.

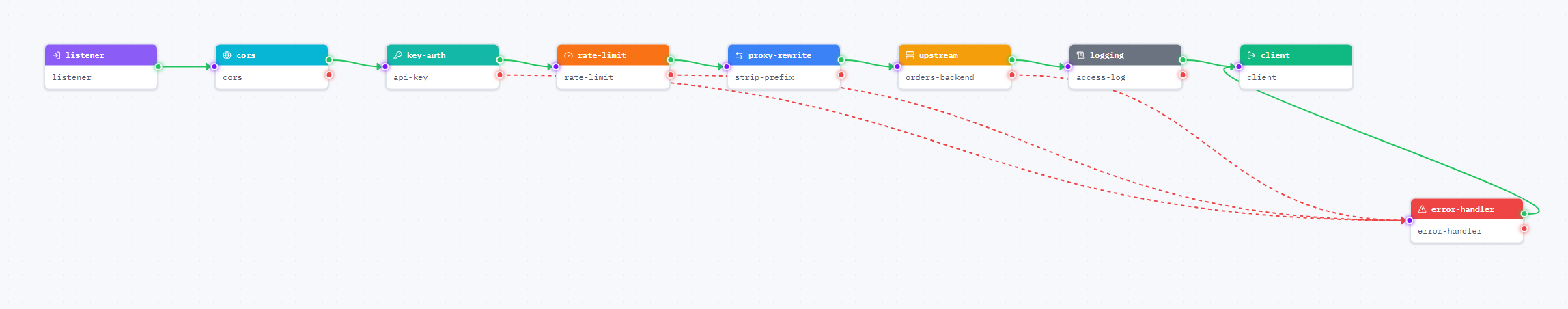

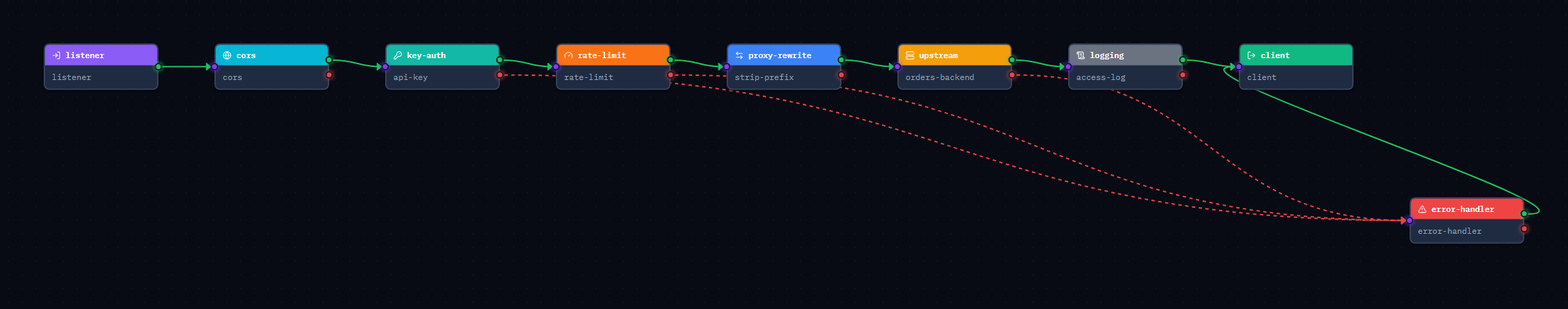

A policy as the editor draws it, with every node's ports rendered as labeled rows. Solid green edges are the success path: listener → cors → key-auth → rate-limit → proxy-rewrite → upstream → logging → client. The single dashed red edge is an error port: upstream's fires only when the backend itself is unreachable, landing on error-handler rather than a raw 500. The violet edges are a different thing entirely — deliberate outcomes, not failures — so each one exits straight to client with its response already prepared: cors's preflight for an answered OPTIONS request, key-auth's denied for a rejected API key, and rate-limit's limited for a throttled one.

Nodes

Each node entry has:

Field	Meaning
id	Unique identifier within the policy; used by edges and in error records
type	Plugin type (listener, client, upstream, proxy-rewrite, error-handler, jwt-auth, script, ...)
config	Type-specific configuration map (optional for structural nodes)
position	Optional {x, y} canvas coordinates, used only by the web UI

Two node types are structural rather than plugins: listener (entry) and client (exit) — see Listener and client nodes.

Edges and ports

Edges use the node_id.port form on both ends:

edges:
  - from: rewrite.success
    to: backend.in

Port	Kind	Direction	Meaning
out	—	output	Alias for success on edge endpoints; the only output listener declares
success	success	output	Emits the context when the node completes normally and the request continues
(plugin-declared)	outcome	output	The node did its job and chose a deliberate alternate route — a rejection, redirect, throttle, or short-circuit, usually with the response already fully prepared. Names are drawn from a shared vocabulary (below), not invented per plugin
error	error	output	Emits the context (with the node's error appended) when the node could not do its job — configuration, parse, or infrastructure failure
in	—	input	Receives the context

The endpoint string is split on the last dot, so node IDs may themselves contain dots. An endpoint with no dot at all defaults its port to out.

Outcome ports and the mandatory-wiring rule

Most plugins declare only the default success/error pair. 37 node types additionally declare one or more outcome ports for a deliberate alternate result that isn't a failure — key-auth exits on denied for an invalid API key, cors exits on preflight for an answered OPTIONS request, rate-limit exits on limited for a 429, and so on. Every plugin's full port declaration (name, kind, and a description) is inspectable from the plugin catalog at GET /api/plugins — the same catalog the web UI's node-graph editor reads to render each node's handles, colored by port kind. The editor does not pre-flag an unconnected handle; a policy that leaves a mandatory port unwired is rejected when you save it, and the compiler's message appears as an error toast.

Every port of kind success or outcome is mandatory: the policy compiler rejects any policy that leaves one unwired. For example, a policy that wires key-auth's success edge but not its denied edge fails compilation (at startup, on hot-reload, or on an Admin API write) with:

policy 'my-policy': output port 'denied' of node 'auth' (type 'key-auth') must be wired — add an edge from 'auth.denied'

The message names the policy, the port, the node, and the node's type. The port checks report the first violation and stop — fix it and recompile to see the next one. (This differs from the structural rules in Error handling, which collect all violations at once, and from saving a supernode definition, whose port violations are all reported together.) Only error stays optional — its fallback chain (per-node error edge → policy catch-all → a generic 500, see Error handling) is unchanged, because it's fine for "the node might fail someday" to have no dedicated handler; it is never fine for "the node just produced a fully-formed rejection" to have nowhere to go.

The standard outcome vocabulary — no plugin invents a synonym:

Port	Meaning	Typical status
denied	Deliberate policy rejection	401 / 403 / 405 / 413
redirect	Deliberate 3xx response	301 / 302 / 307 / 308
limited	Traffic-control rejection	429
broken	Circuit breaker open	502 / 503
preflight	CORS preflight answered	204
abort	Injected fault response	configurable
routed	Steered to and served by an alternate weighted target	backend-defined
hit	Served from cache	cached status
true / false	Boolean branch of the condition waypoint	n/a (pure routing)

Outcome ports typically carry a response that's already fully prepared, so they're almost always wired straight to client — routing one through upstream would let it overwrite the prepared response, and routing it through error-handler would replace the prepared body with the handler's template. The exception is condition's true/false pair, which carries an untouched request and is wired onward into the branch's remaining pipeline. A handful of node types (limit-conn, api-breaker, proxy-cache) are expressed as a pair of nodes sharing one type and therefore one port declaration, so the role that never actually emits the outcome (e.g. limit-conn's release node) still has to have it wired.

For any specific plugin's exact ports, when each one fires, and a wiring example, see that plugin's own page in the plugin reference — every plugin with outcome ports carries a Ports section.

Behavior changes in this release

Splitting deliberate outcomes off the error port changed three externally-visible behaviors. None of them needs a config change, but they do change what you see in metrics, logs, and a few status codes.

What changed	Before	Now
gateway_request_errors_total / gateway_node_errors_total	Every rejection incremented them: a 401 from key-auth, a 429 from rate-limit, an open breaker, a redirect.	Only genuine node failures do. Denials, throttles, breaker opens, aborts, and redirects carry no error record and increment nothing. Count them from gateway_requests_total's status label. See Observability.
error-log-logger	Captured deliberate rejections along with real failures, since both landed in context.errors.	Captures failures only. To log denials and throttles, put a regular access logger on the branch the outcome port takes. See error-log-logger.
dingtalk-auth / feishu-auth provider failures	A failed callout to DingTalk/Feishu (unreachable, timeout, unparseable reply) surfaced to the client as 401, indistinguishable from a refused login.	Surfaces as 502 on the node's error port. A 401 on denied now means only "the provider refused this code".

Two related notes:

• error-handler no longer touches an errorless context. A response that arrives with no error record — every outcome exit — passes through untouched instead of being overwritten by the handler's status and template. Wire outcome ports straight to client; to reshape one, route it through response-rewrite, or exit-transformer with always: true.
• Mandatory wiring is new. Existing policies that omit an outcome edge now fail to compile with the message shown above. That is a compile-time error surfaced at startup, on hot-reload, or on an Admin API write — never at request time.

Full YAML example

The policy shipped in config/gateway.yaml:

policies:
  - name: echo-policy
    error_handler: error-handler      # policy-level catch-all (optional)
    nodes:
      - id: listener
        type: listener

      - id: rewrite-request
        type: proxy-rewrite
        config:
          phase: request
          strip_path_prefix: /api

      - id: backend
        type: upstream
        config:
          targets:
            - host: ${ECHO_BACKEND_HOST:-localhost}
              port: ${ECHO_BACKEND_PORT:-3000}

      - id: rewrite-response
        type: proxy-rewrite
        config:
          phase: response
          remove_headers:
            - x-powered-by

      - id: error-handler
        type: error-handler
        config:
          status_code: 502
          body_template: '{"error": "{{error.code}}", "message": "{{error.message}}"}'

      - id: client
        type: client

    edges:
      - from: listener.out
        to: rewrite-request.in
      - from: rewrite-request.success
        to: backend.in
      - from: backend.success
        to: rewrite-response.in
      - from: rewrite-response.success
        to: client.in
      - from: backend.error
        to: error-handler.in
      - from: error-handler.success
        to: client.in

This same YAML is what the web UI reads and writes — designing the graph on the canvas and editing the file by hand are interchangeable.

Command palette

The editor has a command palette: Ctrl+K, or the command-icon button in the canvas toolbar next to the theme toggle, opens a searchable modal listing every action available in the current context, each row showing its keyboard shortcut as a small chip. Type to filter, arrow keys to move the selection, Enter to run, Escape to close.

One entry — Toggle port names — is the switch behind the labeled port rows in the screenshot above. It's on by default; turning it off falls back to bare handle dots with the port name available only as a hover tooltip. The preference is stored in the browser's localStorage (key portNames) and persists across sessions, independent of whatever policy happens to be open.

The v1 shortcut list:

Key	Action	Available
P	Toggle port names	Always
R	New route	Always
S	New supernode	Always
C	New shared plugin config	Always
A	Add plugin to canvas	Editor open on a route or supernode
Ctrl+S	Save policy	Editor open on a route or supernode
Y	View YAML	A route, supernode, or plugin config selected

Two actions are palette-only, with no bound key: Reload gateway config and Toggle theme. An action unavailable in the current context — A and Ctrl+S before any editor is open on a route or supernode, Y before anything is selected — is hidden from the palette and does not run.

Single-letter shortcuts are typing, not commands, wherever text is being entered: they are inert while an <input>, <textarea>, <select>, or contenteditable element has focus (so typing "rate" into a filter box doesn't fire New route, and typing a letter in a dropdown still jumps to the matching option), and inert while a modal dialog is open, so a stray keystroke can't stack a second dialog on top of the first. Ctrl+S is the exception in the other direction: it always suppresses the browser's own Save Page dialog, from a text field as much as from the canvas, and whether or not a policy is open to save.

Compilation rules

Before serving traffic, each policy is validated (see the rules in Error handling) and compiled into an executable graph. Compilation:

• instantiates each node's plugin from its type and config;
• records every client node as a terminal — execution stops when the context reaches one;
• indexes edges by their source port, normalizing out to success; an edge naming a port the node's type doesn't declare is a compile error, and two edges leaving the same node.port (fan-out) is also a compile error — any number of edges may arrive at the same node (fan-in);
• rejects cycles: the runtime walk follows edges with no step limit, so a graph whose edges loop back on themselves (through any port, error edges included) fails compilation naming a node on the loop;
• enforces the mandatory-wiring rule: every success or outcome port of every node must have an outgoing edge, or compilation fails naming the missing edge (error ports are exempt — see Error handling);
• determines the entry node as the target of the listener's success/out edge — this is the first node executed for each request;
• fails if the policy has no listener node or a plugin cannot be constructed from its config.

Each node has at most one edge per output port. At runtime the engine follows the port the executing plugin's result names: success after a normal result, the plugin's own outcome port (e.g. denied, redirect) after a deliberate alternate result, or the error edge (or the policy's catch-all handler) after a failure — ending at a terminal client node or at a node with no outgoing edge for the port it just took.

One compiled graph instance serves all requests for the routes that reference its policy; it is shared read-only across requests.

Planned

The specification also describes an unpack node for extracting typed values out of the Context and wiring them into named input ports of other nodes. This node type is not implemented; the only input port in use today is in, carrying the Context.
